Webhooks 🌐

Webhooks offer a powerful mechanism to receive real-time notifications of events like incoming SMS messages. This integration guide will walk you through setting up webhooks to receive such notifications directly from your device.

Supported Events 📩

Currently, the following events are supported:

  • sms:received - 📨 Triggered when an SMS is received by the device. The payload for this event includes:
    • messageId: The ID of the SMS message. Note: This ID is generated based on the message content and is not guaranteed to be unique. Do not rely on it as a unique identifier.
    • message: The content of the SMS message.
    • phoneNumber: The phone number that sent the SMS.
    • simNumber: The SIM card number that received the SMS. May be null on some Android devices.
    • receivedAt: The timestamp (in the device’s local timezone) when the message was received.
  • sms:sent - ✉️ Triggered when an SMS is sent by the device. The payload includes:
    • messageId: The ID of the SMS message.
    • phoneNumber: The recipient's phone number.
    • simNumber: The SIM card number that sent the SMS. May be null if the default SIM is used.
    • sentAt: The timestamp (device’s local timezone) when the message was sent.
  • sms:delivered - ✅ Triggered when an SMS is delivered to the recipient. The payload includes:
    • messageId: The ID of the SMS message.
    • phoneNumber: The recipient's phone number.
    • simNumber: The SIM card number that sent the SMS. May be null if the default SIM is used.
    • deliveredAt: The timestamp (device’s local timezone) when the message was delivered.
  • sms:failed - ❌ Triggered when an SMS fails to send or is not delivered. The payload includes:
    • messageId: The ID of the SMS message.
    • phoneNumber: The recipient's phone number.
    • simNumber: The SIM card number that sent the SMS. May be null if the default SIM is used.
    • failedAt: The timestamp (device’s local timezone) when the failure occurred.
    • reason: The failure reason.
  • system:ping - 🏓 Triggered when the device pings the server. The payload includes:

Prerequisites ✅

Before you begin, ensure the following:

  • ⚠️ You have SMS Gateway for Android™ installed on your device in Local, Cloud, or Private mode.
  • 🔒 You have a server with a valid SSL certificate to securely receive HTTPS requests. You can use project's certificate authority (CA) to generate a valid certificate for IP addresses. Alternatively, use services like ngrok to generate a public HTTPS endpoint.
  • 🌐 Your device has access to your server. If you operate entirely within your local network without Internet access, please see FAQ

Step-by-Step Integration 📋

Step 1: Set Up Your Server 🖥️

For your webhooks to work, you need an HTTP server capable of handling HTTPS POST requests. This server will be the endpoint for the incoming webhook data.

  • Production: Use a valid SSL certificate.
  • Testing: Tools like webhook.site provide temporary endpoints to capture payloads.

Step 2: Register Your Webhook Endpoint 📝

To start receiving webhook notifications, you must register your webhook endpoint with the device. Utilize the curl command to send a POST request to the appropriate address, depending on whether you're in Local, Cloud, or Private mode.

  • Local mode: Use the device’s local IP and port (e.g., https://192.168.1.10:8080/webhooks).
  • Private mode: Use your server’s domain name or IP and port (e.g., https://your-server.com/3rdparty/v1/webhooks).
  • Cloud mode: Use https://api.sms-gate.app/3rdparty/v1/webhooks.
Cloud mode example
curl -X POST -u <username>:<password> \
  -H "Content-Type: application/json" \
  -d '{ "url": "https://your-server.com/webhook", "event": "sms:received" }' \
  https://api.sms-gate.app/3rdparty/v1/webhooks

Replace: - <username>:<password>: Credentials from the Home tab of the app. - https://your-server.com/webhook: The URL of your webhook endpoint. - https://api.sms-gate.app/3rdparty/v1/webhooks: The appropriate URL for your mode.

In Cloud and Private modes, please allow some time for the webhooks list to synchronize with your device.

Multiple Events

Each webhook is registered for a single event. To listen for multiple events, register separate webhooks.

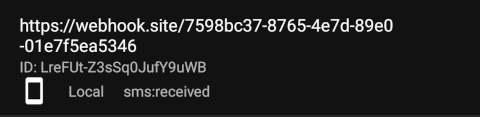

Step 3: Verify Your Webhook ✔️

You can verify that it has been successfully registered by executing the following curl command:

Cloud mode example
curl -X GET -u <username>:<password> \
  https://api.sms-gate.app/3rdparty/v1/webhooks

Local mode and Cloud/Private mode maintain separate webhook lists. Use the corresponding API URL to view registrations.

Step 4: Test the Webhook 🧪

  • For sms:received: Send an SMS to the device.
  • For sms:sent/delivered/failed: Send an SMS from the app to trigger these events.
  • For system:ping: Enable the ping feature in the app’s Settings > Ping.

Step 5: Receive the Payload 📤

Your server will receive a POST request with a payload like:

{
  "deviceId": "ffffffffceb0b1db0000018e937c815b",
  "event": "sms:received",
  "id": "Ey6ECgOkVVFjz3CL48B8C",
  "payload": {
    "messageId": "abc123",
    "message": "Android is always a sweet treat!",
    "phoneNumber": "6505551212",
    "simNumber": 1,
    "receivedAt": "2024-06-22T15:46:11.000+07:00"
  },
  "webhookId": "<unique-id>"
}

Timely Response

Your server must respond with a 2xx status within 30 seconds to prevent retries

The app implements an exponential backoff retry strategy: it waits 10 seconds before the first retry, then 20 seconds, 40 seconds, and so on, doubling the interval each time. By default, the app will retry 14 times (approximately 2 days) before giving up. You can specify a custom retry count in the app's Settings > Webhooks.

Step 6: Deregister a Webhook 🗑️

If you no longer wish to receive webhook notifications, deregister your webhook with the following curl command:

Cloud mode example
curl -X DELETE -u <username>:<password> \
  'https://api.sms-gate.app/3rdparty/v1/webhooks/%3Cunique-id%3E'

Security Considerations 🔐

  • Use HTTPS: Encrypts data in transit.
  • Secure Your Endpoint: Protect your webhook endpoint against unauthorized access. For example, you can specify authorization key as query-parameter when registering the webhook.
  • Rotate Credentials: Regularly update passwords.

Payload Signing 🔏

Webhook requests are signed with HMAC-SHA256 for verification. The device includes these headers:

  • X-Signature - Hexadecimal HMAC signature
  • X-Timestamp - Unix timestamp (seconds) used in signature generation

The signing key is randomly generated at first request and can be changed in Settings → Webhooks → Signing Key

Signing Key Configuration

Webhook signing key configuration

Verification process:

  1. Get raw request body as received (before JSON parsing)
  2. Concatenate with X-Timestamp value
  3. Compute HMAC-SHA256 using the signing key
  4. Compare result with X-Signature header
package webhooks

import (
  "crypto/hmac"
  "crypto/sha256"
  "encoding/hex"
)

func VerifySignature(secretKey, payload, timestamp, signature string) bool {
  message := payload + timestamp
  mac := hmac.New(sha256.New, []byte(secretKey))
  mac.Write([]byte(message))
  expectedMAC := mac.Sum(nil)
  expectedSignature := hex.EncodeToString(expectedMAC)

  return hmac.Equal([]byte(expectedSignature), []byte(signature))
}

import hmac
import hashlib


def verify_signature(secret_key: str, payload: str, timestamp: str, signature: str) -> bool:
    message = (payload + timestamp).encode()
    expected_signature = hmac.new(secret_key.encode(), message, hashlib.sha256).hexdigest()
    return hmac.compare_digest(expected_signature, signature)

const crypto = require('crypto');

function verifySignature(secretKey, payload, timestamp, signature) {
    const message = payload + timestamp;
    const expectedSignature = crypto
        .createHmac('sha256', secretKey)
        .update(message)
        .digest('hex');

    return expectedSignature === signature;
}

<?php
function verify_signature($secret_key, $payload, $timestamp, $signature) {
    $message = $payload . $timestamp;
    $expected_signature = hash_hmac('sha256', $message, $secret_key);

    return hash_equals($expected_signature, $signature);
}

Best Practices

  • Use constant-time comparison to prevent timing attacks.
  • Validate timestamps (e.g., accept only timestamps within ±5 minutes) to prevent replay attacks.
  • Store secret keys securely (e.g., environment variables, secure vaults).

Troubleshooting 🛠️

No Webhooks Received?

  1. Verify the webhook URL is correct
  2. Ensure the device can reach your server
  3. Verify SSL certificate validity
  4. Check device and server logs
  5. Test with webhook.site temporary endpoint

Signature Validation Issues

  • Ensure timestamp is UTC Unix time in seconds
  • Use raw body before JSON decoding

Conclusion 🎉

By following these steps, you've successfully integrated webhooks into your system to receive real-time notifications for incoming SMS messages. This setup enables you to respond to messages promptly and automate workflows based on SMS content.

Remember to adhere to best practices for security and perform thorough testing to ensure reliable webhook delivery.
